Step 6 - Configuring the Project

2min

Project Settings
When creating a project from scratch, it is recommended that you begin by using the "Virtual Production" template, this will ensure that the majority of the required plugins are enabled already.
Additionally, ensure the NcamAR Suite Lite plugin is activated and that the project setting to enable the alpha channel through tonemapper is also enabled. These requirements and others are described in Configure: AR Workflow ﻿

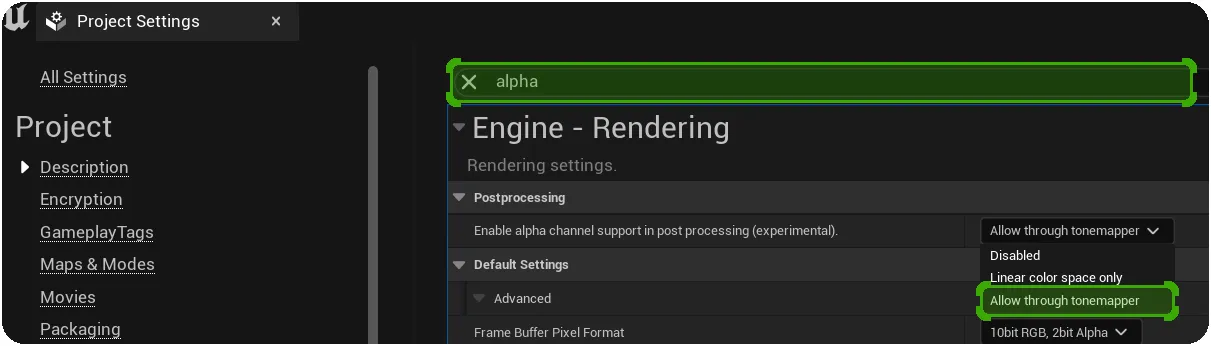

Enable the "Allow through tonemapper" option in Project Settings
﻿
Workflow Wizard
It is recommended that the Ncam Workflow Wizard is used to generate all of the assets that are needed for compositing using Composure and the LiveLink lens plug-in. It is possible to create these without the use of the Wizard but it is not recommended.

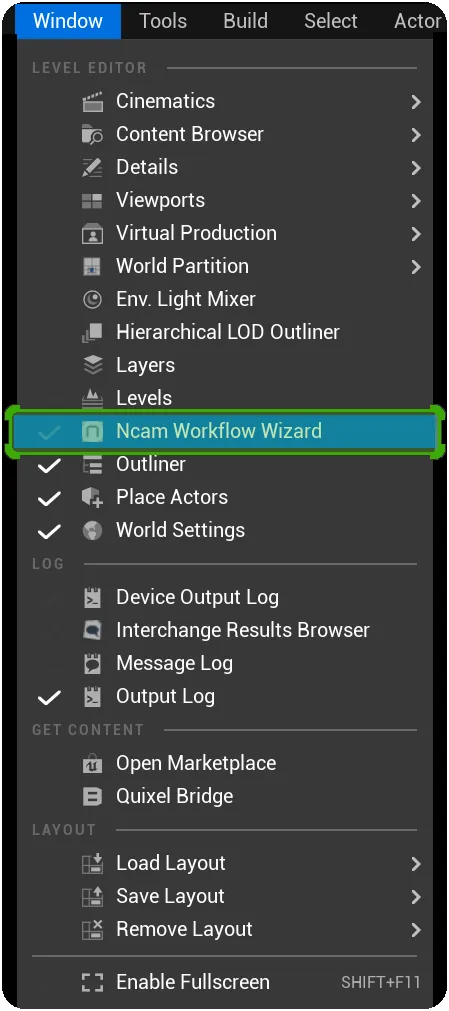

It is recommended that the Ncam Workflow Wizard is used to configure the various assets that are required by the Composure compositing
﻿
See the Configure: AR Workflow ﻿section for details on how to use the Ncam Workflow Wizard.

Updated 25 Mar 2024
