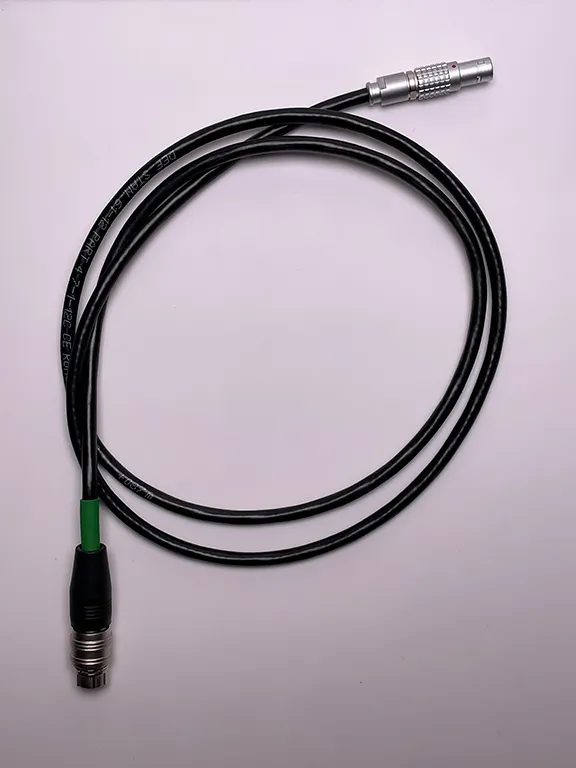

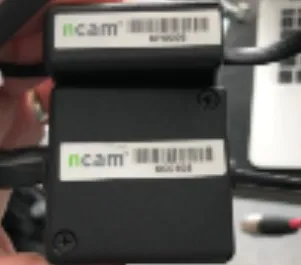

overview ncam utilises the serial data made available from compatible fujinon broadcast and cinema lenses this data is provided via the digital servo encoders and a ncam provided fujinon cable required parts ncam fujinon comms cable 20 pin hirose to 7 pin lemo fujinon lens with digital servo and 16 bit encoders compatibility the serial data is only available on the mk2 platform, for information on using fujinon lenses with older ncam systems see the legacy option below older fujinon lenses some older lenses may not use 16bit encoders, these lenses are not compatible with the ncam provided cable instructions connect the ncam provided cable to the serial port of the lens, connect the 7 pin end to the rs232 port of the mk2 server or connection box inside the ncam reality preferences select " fujinon serial protocol " from the camera bar tab legacy option an older, end of life option for encoding fujinon lenses is by using an ncam "smart box" they are similar in appearance to the current generation of ncam provided cable, and additionally were made in two varieties, one with a rj11 connector for mk1 systems, and one with a 7 pin lemo for mk2 systems if using these devices in your setup, follow these steps on mk1 hardware, connect the rj11 end of the smart box directly to the rj11 port on the mk1 camera bar, the other end connects to the serial port of the lens on mk2 hardware, connect the 7 pin lemo end to either the mk2 server or connection box uart port inside the ncam reality preferences, select the " ncam smart and preston/cmotion box " option from the camera bar tab when using the older smart boxes, lens homing is required
