AR Suite

Known Issues

4min

SDI Media Not Timecode Synchronised
Affects: UE 5.3
Status: Workaround available
Description:
After creating a media profile, the resulting media input uses "platform" and not "Timecode" synchronisation
Solution:

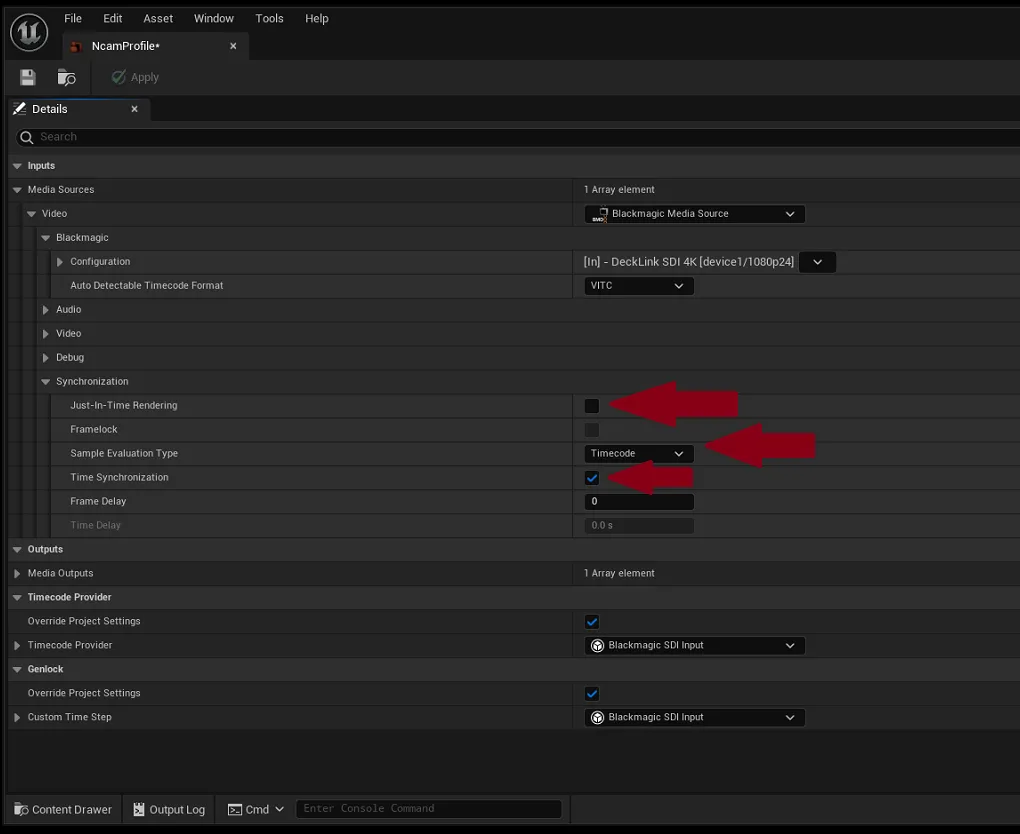

After creating the media profile, ensure that the following settings are configured in the Synchronisation dropdown of the media source
Just in time Rendering - OFF
Sample Evaluation Type - TIMECODE
Time Synchronisation - ON
﻿
White SDI Input signal
Affects: UE 5.2
Status: Workaround available
Description:

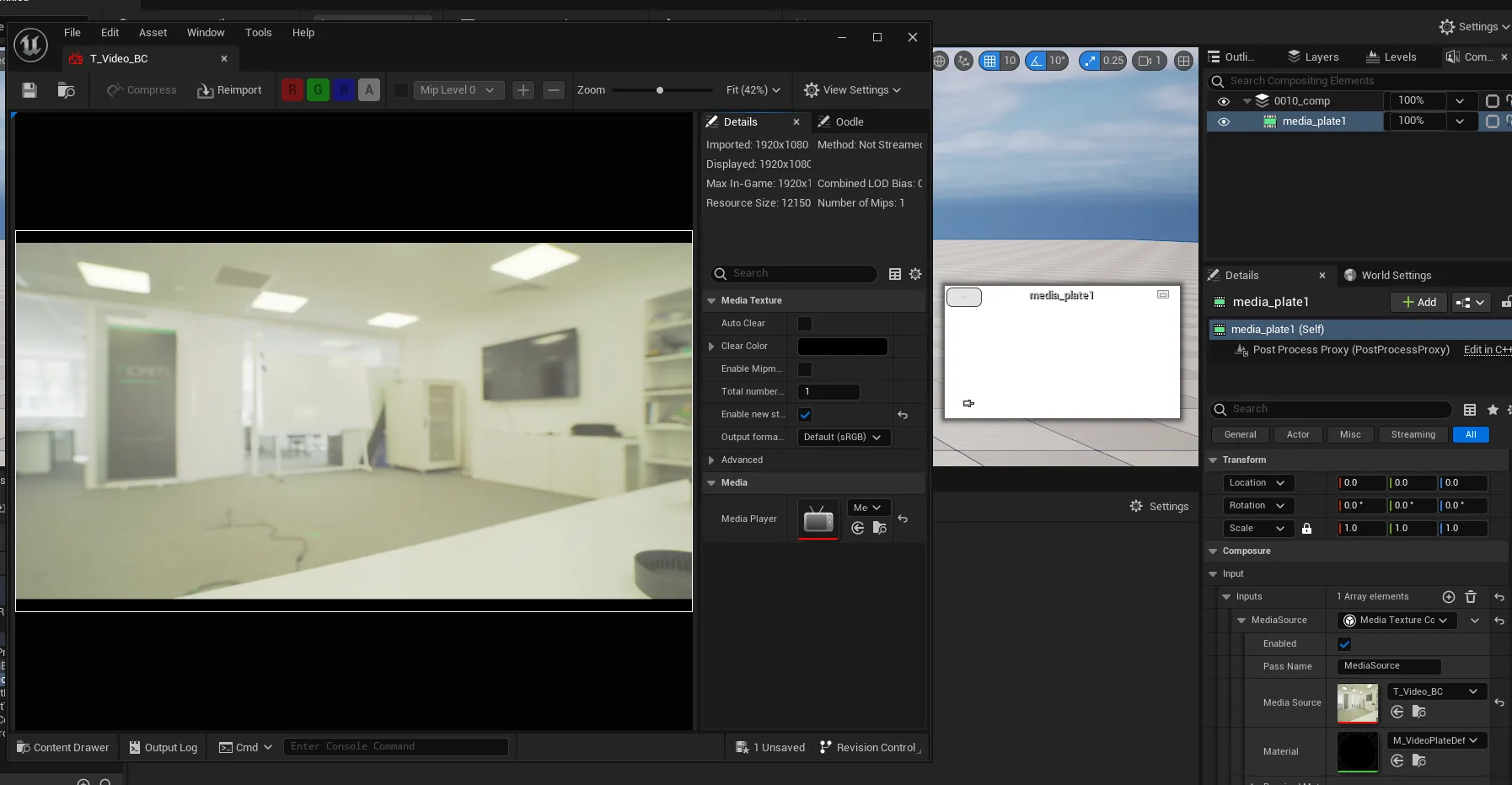

After correctly configuring the media input in the project, the video input, when viewed through composure can appear white
﻿
Solution:

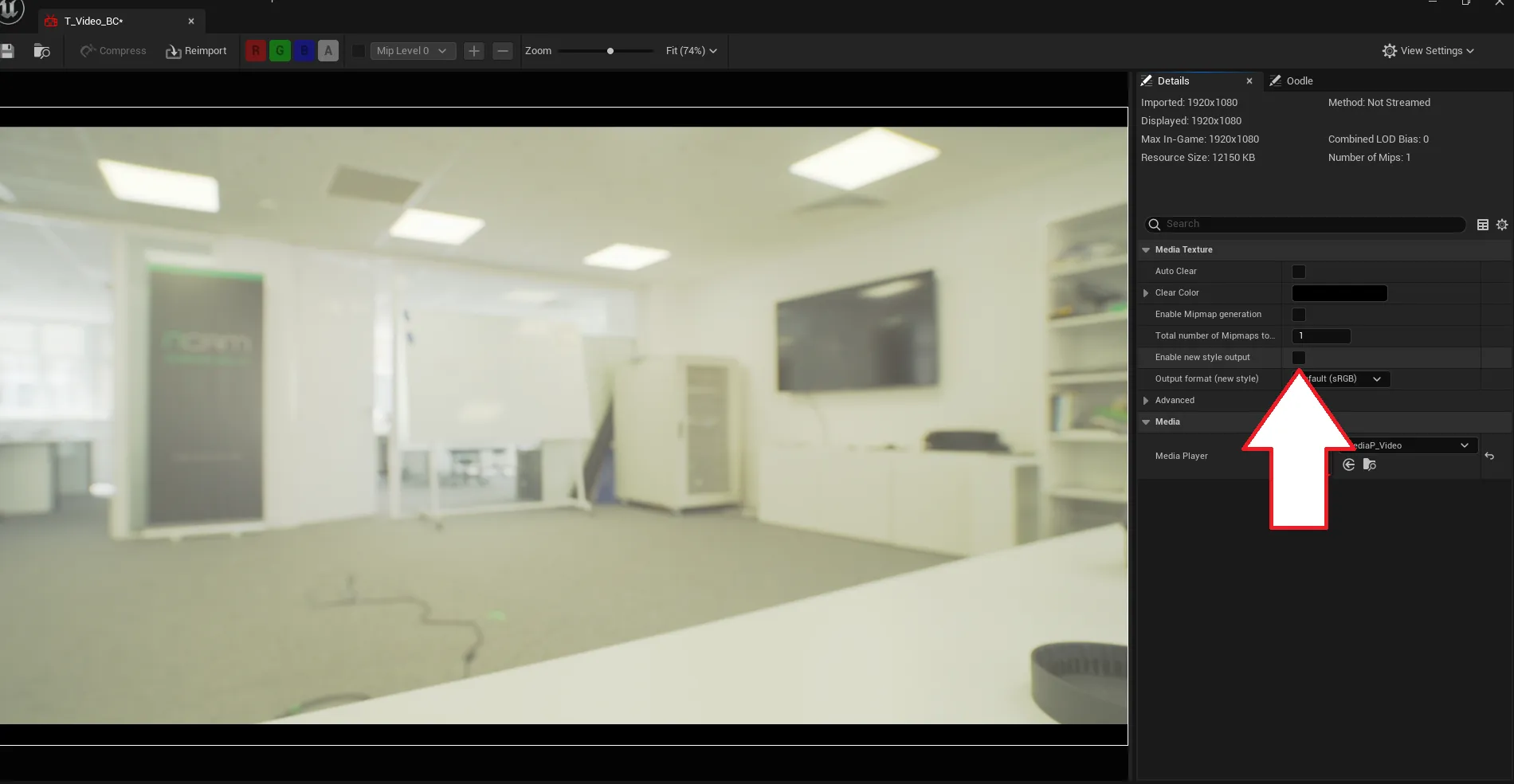

This can be resolved by disabling the "enable new style output" checkbox in the "T_Video_BC" asset
﻿
White halo around hair when using hold-outs and ray tracing
Affects: UE4.26+
Status: Workaround available
Description:
The issue presents itself as a white halo around hair
﻿
An example of the correct result
﻿
A white halo artefact presents itself around hair when using ray tracing and hold-outs with the Ncam AR Suite virtual overlay compositing pipeline. Specifically, the issue occurs when the hair is in front of any hold out that has an unlit surface material. As the NcSkyHoldout mesh that is supplied as part of the plug-in's content uses the unlit NcShadowHoldOutUnlit material the issue will present itself when hair is rendered in front of it.
Solution:
The workaround to the issue is to change the material type of any hold-out that might be rendered behind hair from "unlit" to "default lit". The easiest way to do this is to change the material to be the "NcShadowHoldOut" which is a "default lit" surface material. This is illustrated in the image below:

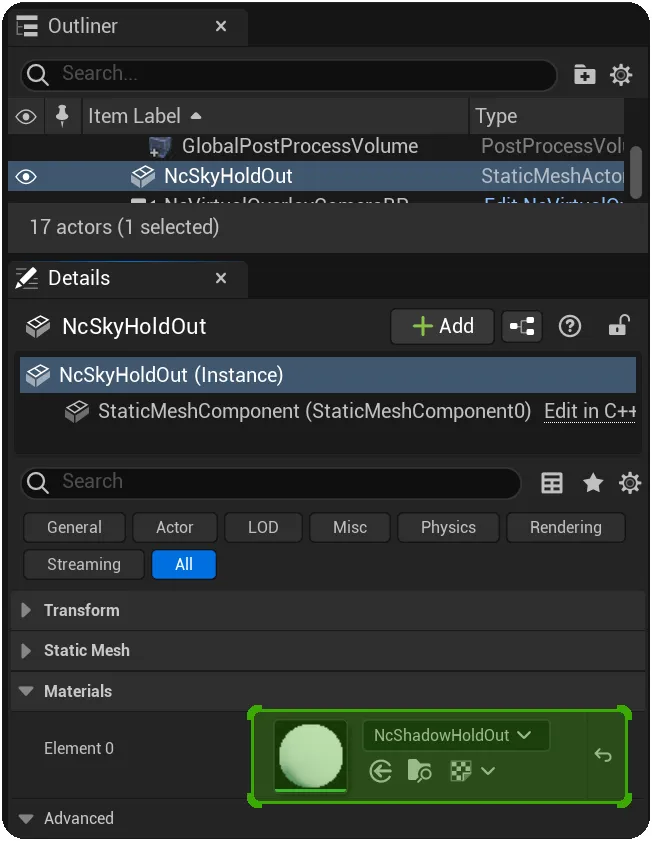

Change the hold-out material to be "NcShadowHoldOut" to resolve the issue
﻿
﻿
