Tilta

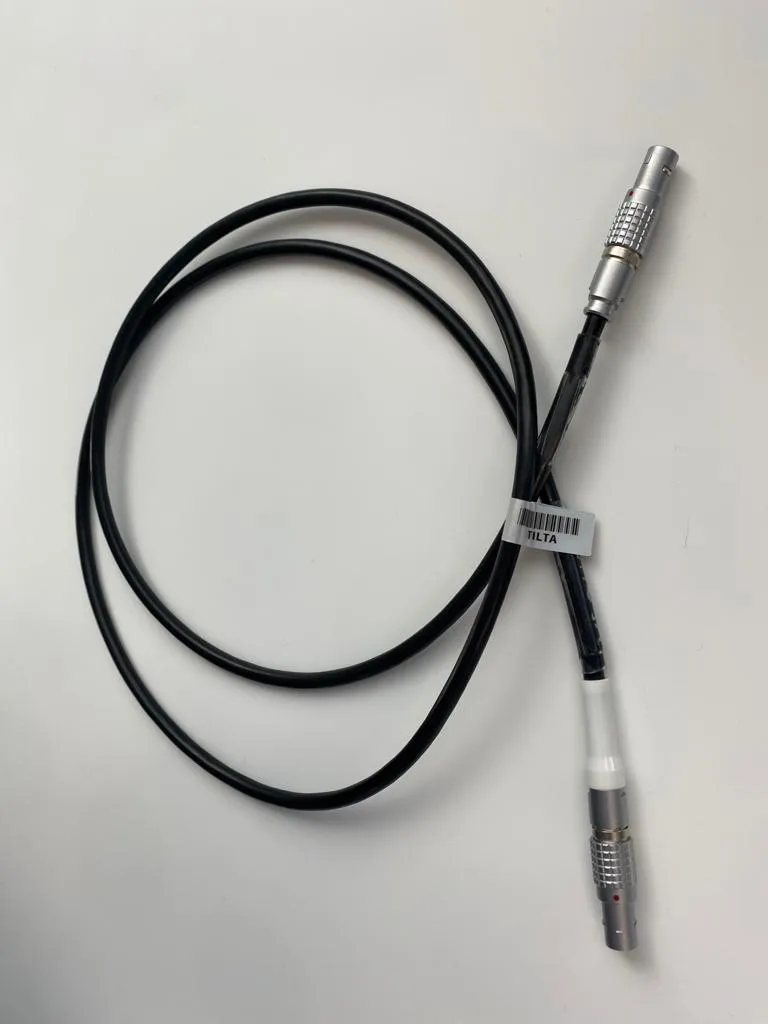

tilta nucleus m overview ncam has an integration with the tilta nucleus m lens control system lens data can be ingested into ncam reality via the use of an ncam provided serial cable required parts ncam tilta comms certified cable 7 pin lemo to 7 pin lemo compatibility tilta is only supported on the mk2 platform instructions connect the ncam provided cable to the uart port of the mk2 server or connection box, plug the other end to the ext of the final motor alternatively the motor end of the cable can also be connected to either of the ext ports on the handgrips or controller of the tilta system inside the ncam reality preferences select the " tilta nucleus m " option from the camera bar tab do not plug any of the tilta provided cables directly into ncam equipment tilta configuration ncam reality requires that the tilta motors and handset are correctly calibrated ncam reality reads the messages between the motors and controller of the tilta system so if these are not powered ncam will not be aware of the position of the motors further to this ncam assumes motor 1 focus motor 2 iris motor 3 zoom as a daily operational workflow, ensure ncam reality is running before powering up the tilta hand unit alternatively, if this is not possible, or the ncam server or connection box has been power cycled since, power cycle the tilta hand unit or activate each controller individually
