Step 8 - Keying Inside Unreal

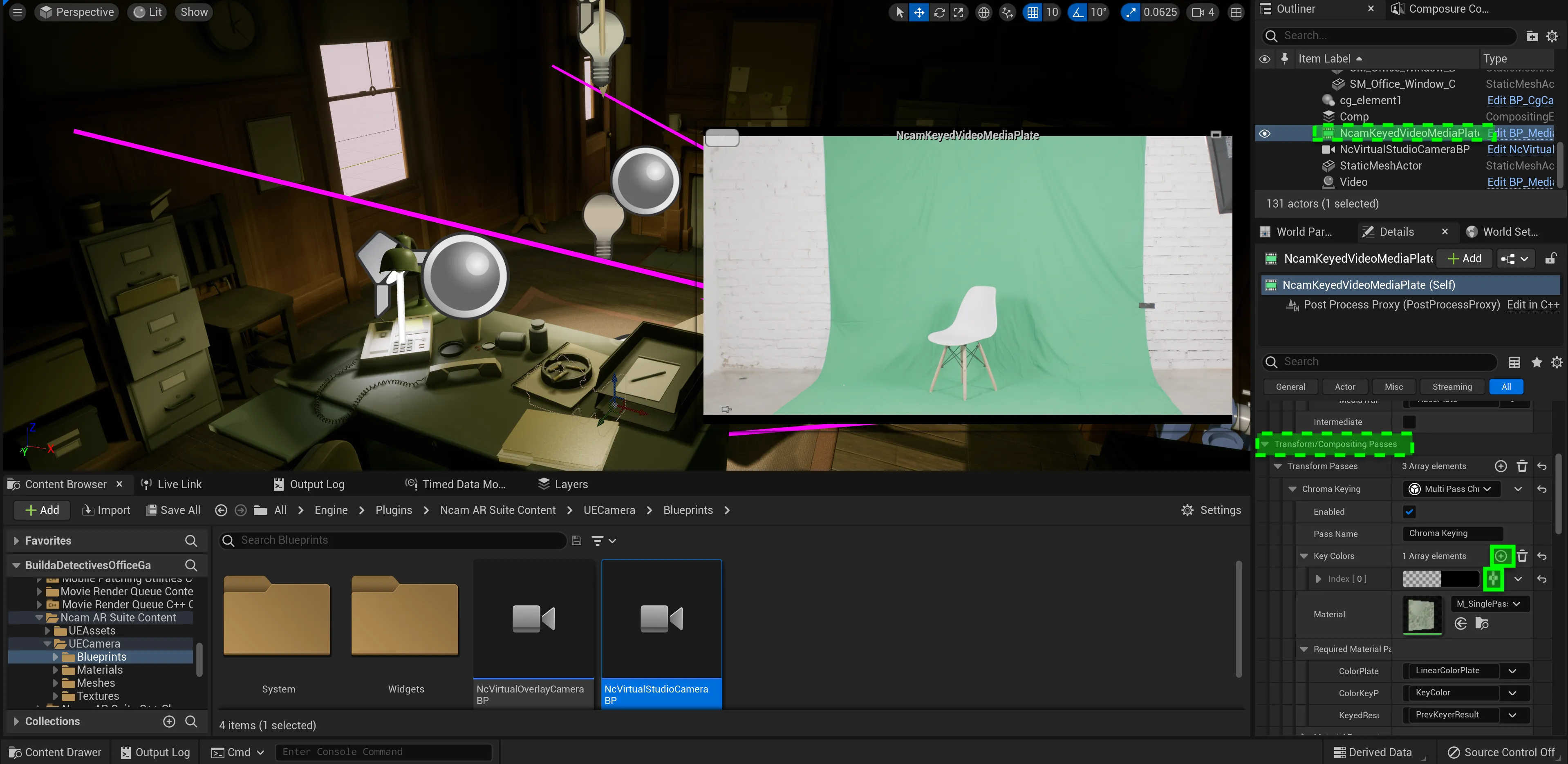

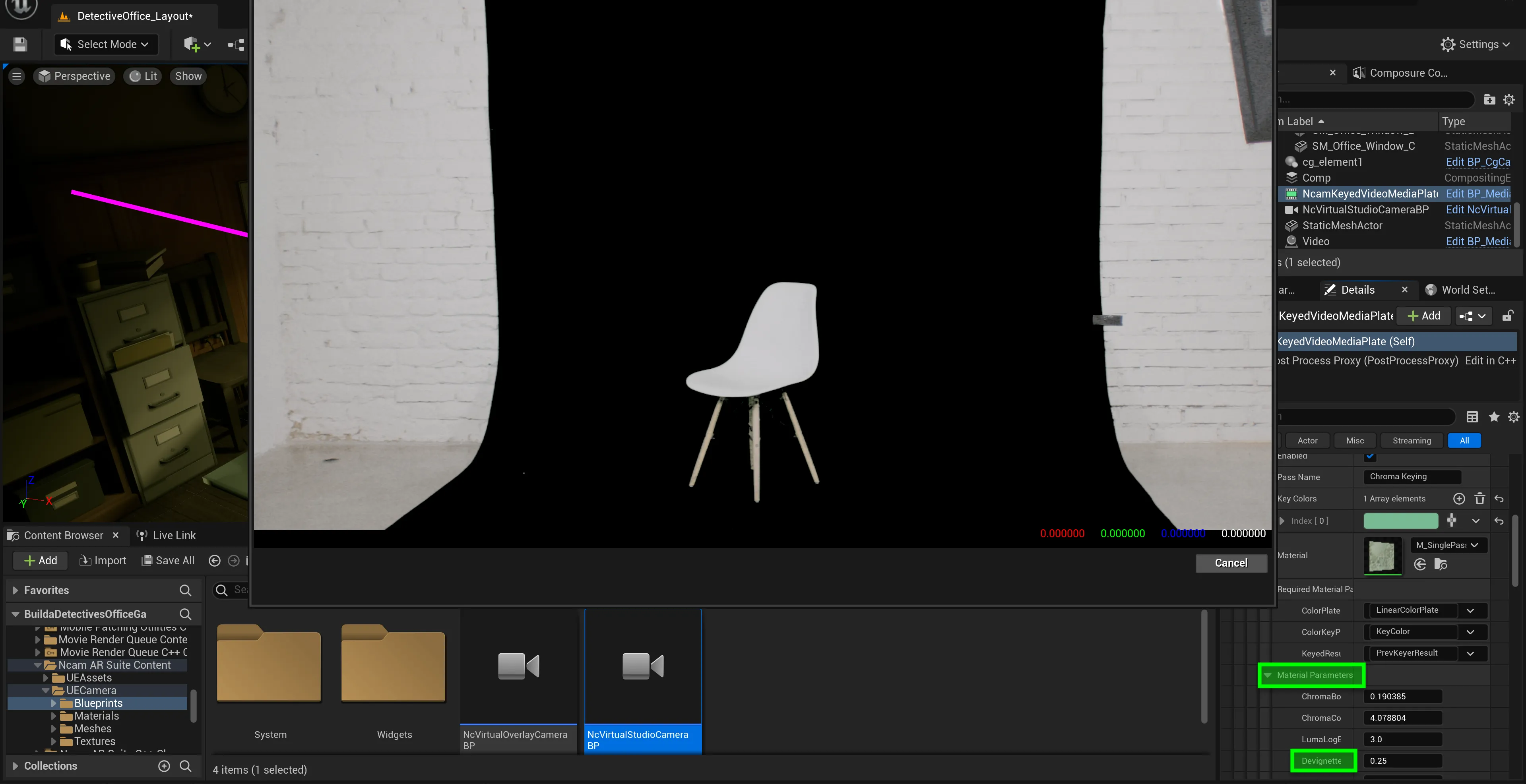

depending on whether the ar suite or ar suite lite plugin is being used there are some slight differences in project configuration, see the relevant subsection below for details on each option ar suite lite ar suite once you chose in ncam workflow wizard option video with composure keyer of input pipeline config that will add media layer named ncamkeyedvideomediaplate into the outliner in outliner choose ncamkeyedvideomediaplate asset and in details tab go to transform/compositing passes > chroma keying > key colors and click on plus button and in index \[0] click pick a colour you can adjust your key in material parameters to devignette image adjust devignetteouter value and click “accept” in the video window
