Brainstorm
4 min

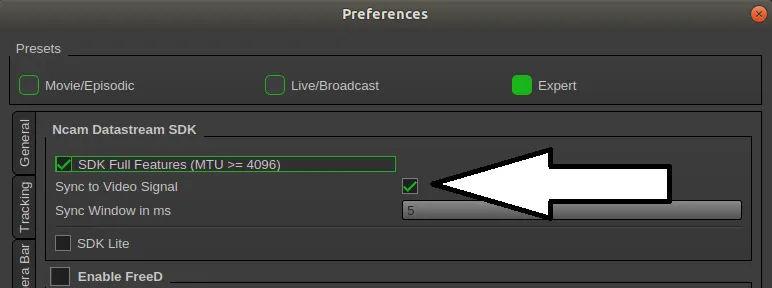

minimum infinityset version the minimum recommended version of brainstorm to use with ncam is infinityset version 4 1 10 minimum ncam version for a successful integration with brainstorm the minimum ncam reality version that should be used is 2021 1 11 protocol freed and ncamsdk , and ncamsdklite are all supported by brainstorm however freed is considered legacy and this workflow has not been tested on newer versions of brainstorm software please use the ncamsdk or ncamsdklite protocol unless specifically recommended otherwise additionally ensure that " sync to video signal " is enabled ncamsdk lite the sdk lite protocol requires brainstorm suite 5 0 4rc 113058 c12016 or later to be installed lens distortion lens distortion should be conducted in ncam reality and streamed into brainstorm via the ncamsdk it is important the lens calibration is using the " cinelens spherical degree2 (zd experimental) " model when it is calibrated in ncam reality see the converting lens distortion models docid\ ncf8eyafv3xlnmuzcjsij section for information on how to convert between different lens distortion models in ncam reality exported lens file ncam can export lens files in a brainstorm compatible format, however this workflow is considered legacy and has not been tested on newer versions of brainstorm software as a result it is not recommended to use the exported lens file option
