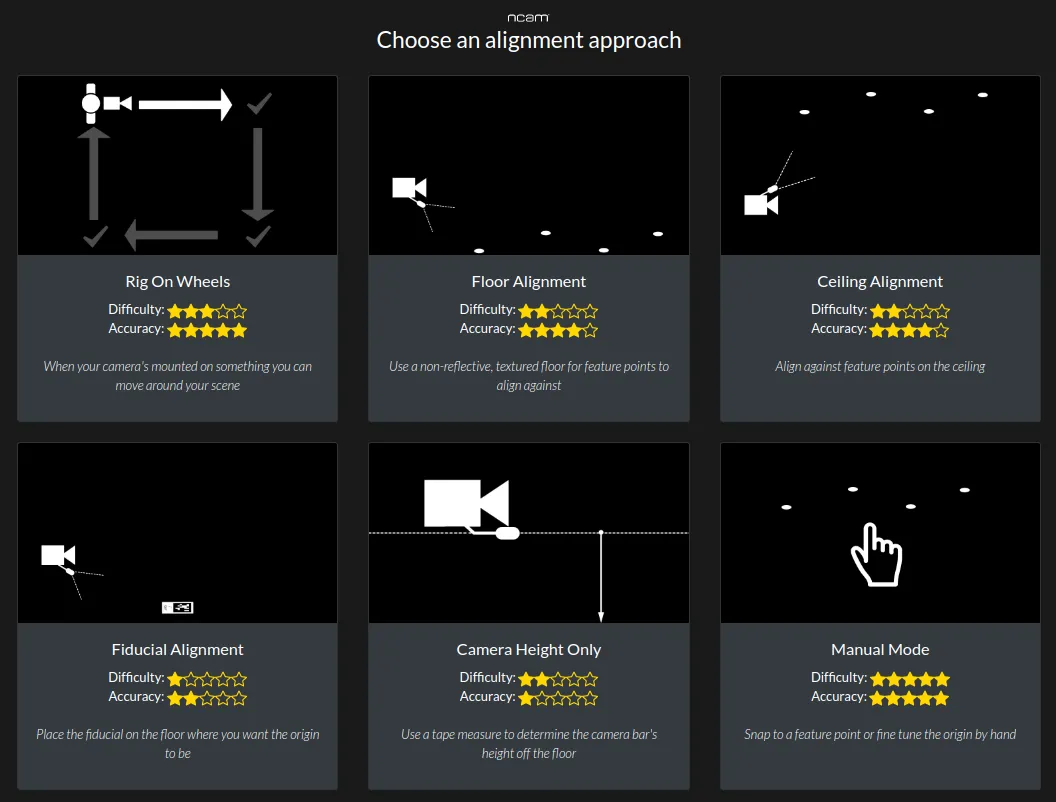

alignments are principally generated via a series of wizards each wizard offers a different approach to generating an alignment, depending on the use case, some approaches will be more applicable than others the alignment options can be reached by the following methods selecting the " align world " option from the actions menu selecting the " setup tracking " option from the actions menu then choosing " create world alignment " on the subsequent page a summary of each alignment is provided below rig on wheels this technique requests that the camera is moved at a fixed height around the tracking area, the information gathered from this movement calculates a very accurate estimate of the floor plane floor alignment this approach calculates the floor plane by using the tracking points detected on the ground to work well it requires a flat, textured floor having a sloped floor or a floor with lots of objects of different heights on it will not work well ceiling alignment similar to the floor alignment, but utilizes the ceiling instead fiducial alignment uses the registration object pattern to place the zero point on the marker camera height only the accelerometer inside the camera bar is used to determine the floor plane following this a manual measurement is made from the floor to the camera bar to offset the camera position it's important the camera is stationary when using this method, the accelerometer is more likely to give poor results if the camera is moving manual mode sets the zero point to a manually selected tracking point, with further manual offsets made available, this method is similar to the technique traditionally used in the full ui
