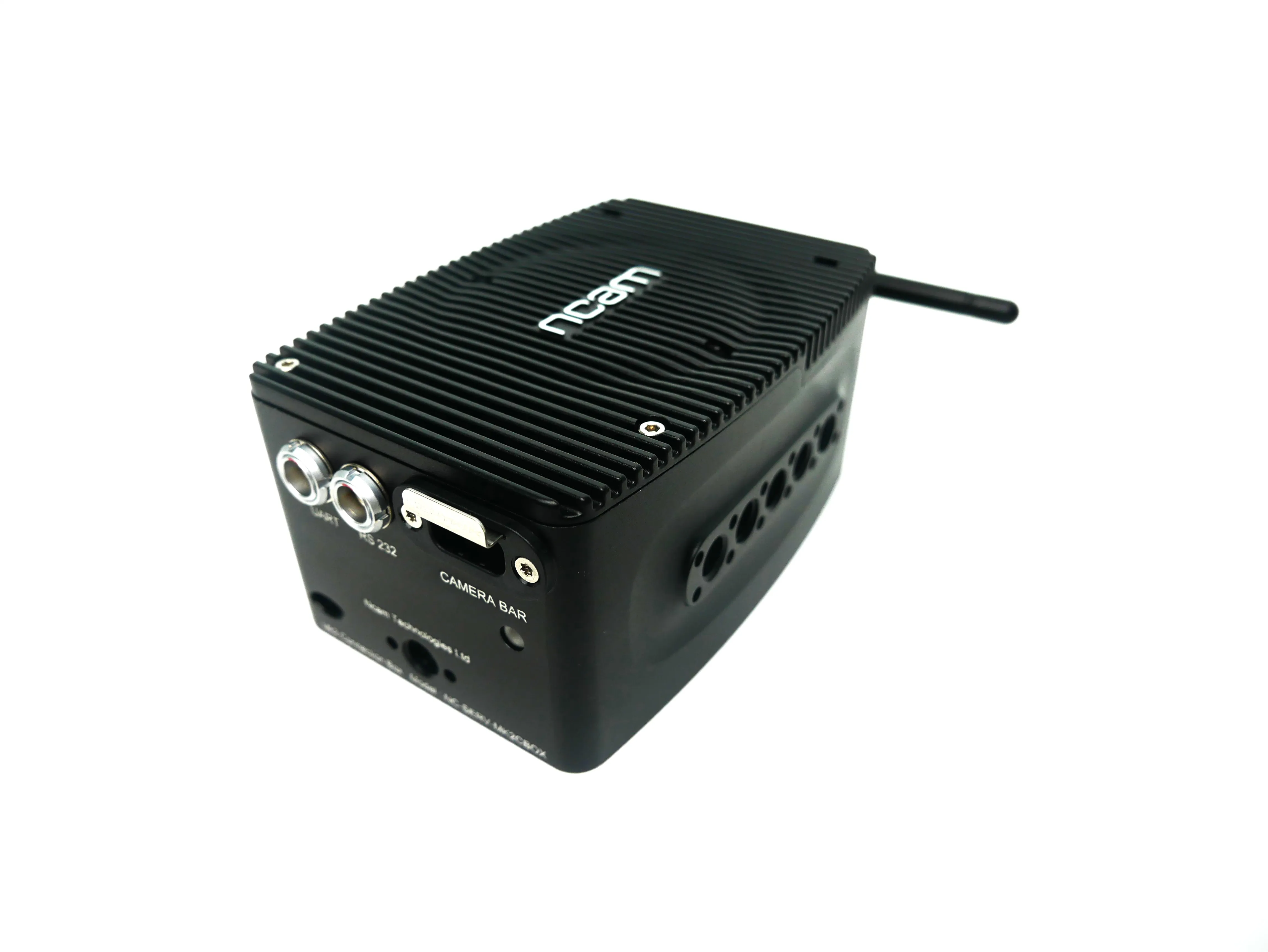

Connection Box

introduction the connection box is an optional component that allows for the mk2 server to be setup remotely from the camera this has the benefit of reducing the amount of hardware that is mounted onto the camera details dimensions 9cm x 6cm x 12cm weight 400g power dc input 8 34v, 7 5/20w (typical/max) mounting 6 1/4” 20 mounting points (2 on underside, 4 on sides) connections network port gigabit ethernet connection to eth 0 on ncam server dc in power input usb c camera bar connection rs 232 for rs232 lens encoders or ir emitter uart for uart lens encoders or ir emitter additional information led light a single led is displayed on connection box to indicate the status of the connection box led color state action blinking green working as intended blinking amber issue with network connection to ncam server check the network connection, reboot the device red critical software issue contact support\@ncam tech com amber software deactivated reboot the device, contact support\@ncam tech com if the issue repeats wireless network the connection box generates a wireless network ssid printed on the device in the format "ncbxxxx" password ncamncam the primary purpose of the wireless network on the connection box is to allow an operator to connect to the ncam server's webui while at the camera
