Mk2 Server
The Mk2 server is the processing unit of the system, it runs the Ncam Reality tracking software and is designed in a fashion to allow it to be mounted either remote to the camera (with the use of a Connection box), or placed directly on the camera body itself.

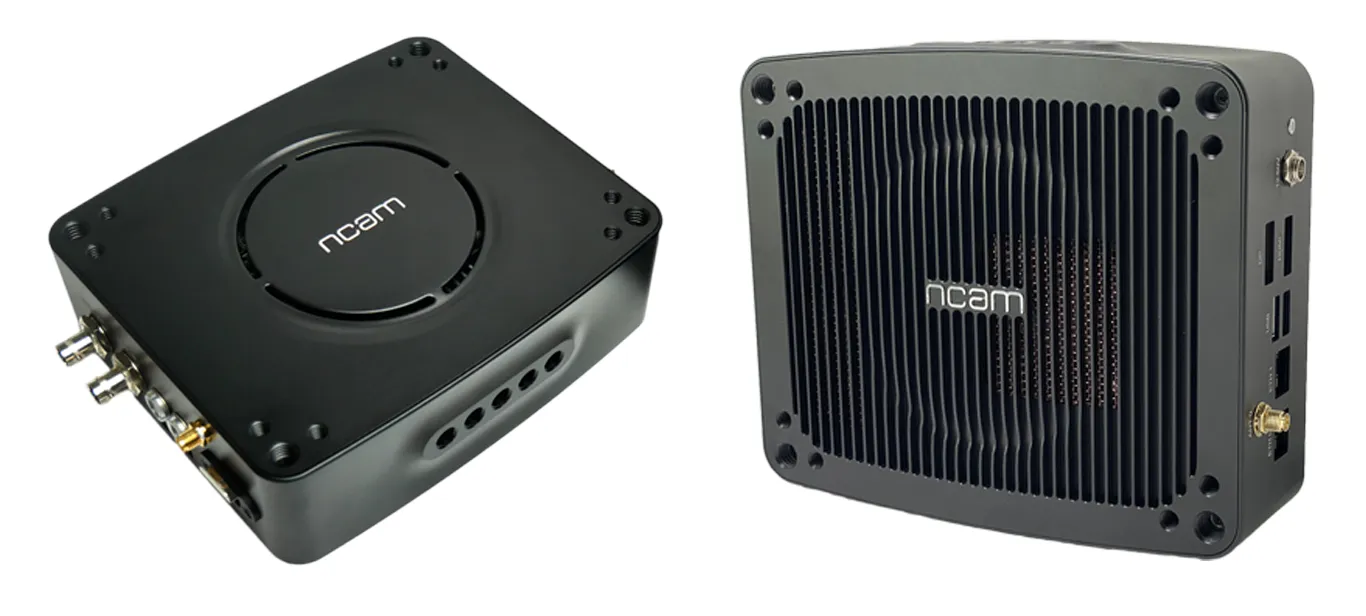

There are two generations of Mk2 server, the primary difference between the two is the redesign of the case lid to allow for passive cooling of the server
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
|---|---|
Operating Humidity | 0% to 90% RH non condensing |
Operating Voltage | 12V to 34 V DC |
Typical Power Consumption | 30 W |
Storage Temperature | 32°F to 176°F (0°C to 80°C) |
Dimensions | 176 x 150 x 55 mm |
Weight | 1150 g |
Mounting Points | Multiple industry standard 1/4”-20 and 3/8”-16 |

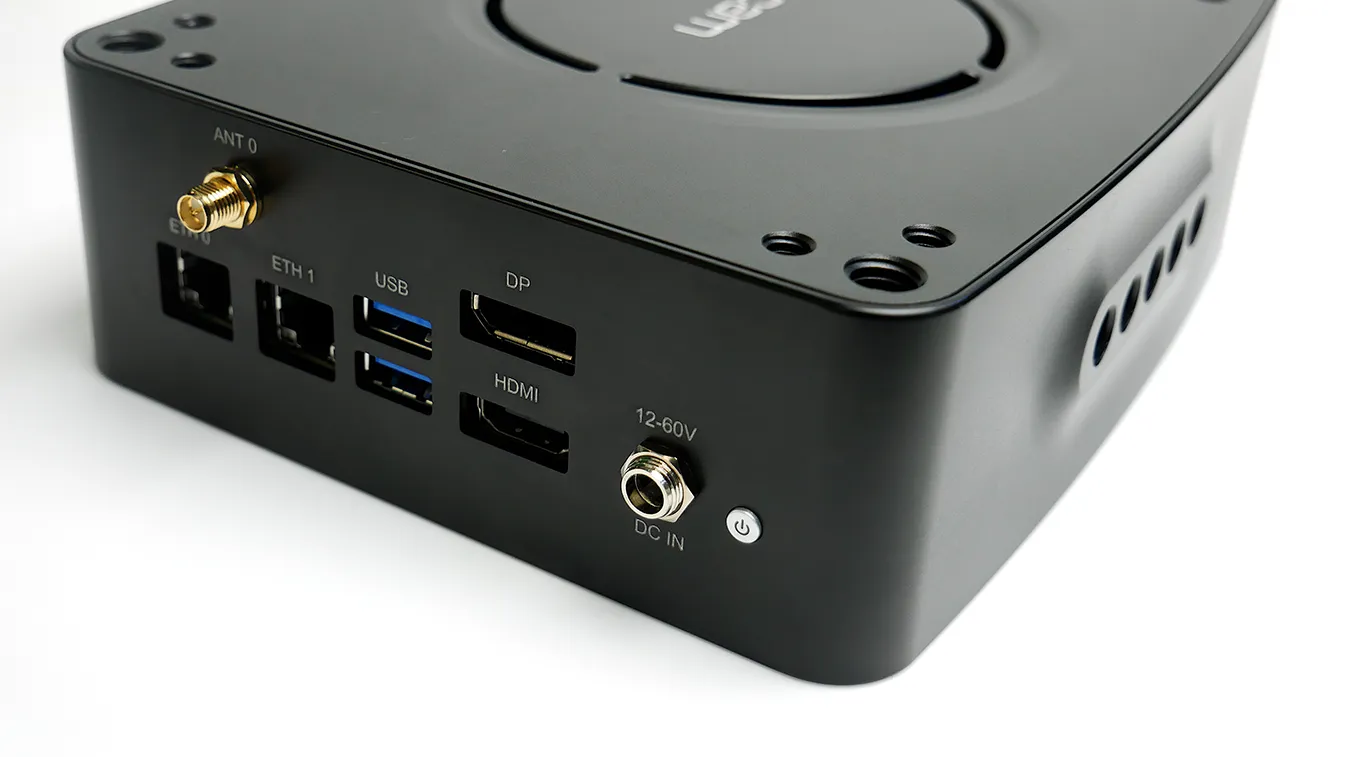

ETH 0 - Preconfigured as a DHCP server
ETH 1 - Unconfigured, preferred port for assigning a static IP address or sending tracking data
USB - Standard USB port for connecting peripherals
DP - Display port connection for external monitor
HDMI - HDMI port connection for external monitor
DC IN - Power input for Mk2 server
ANT 0 - Antenna connection for wireless
POWER - Power button for turning on the Mk2 Server

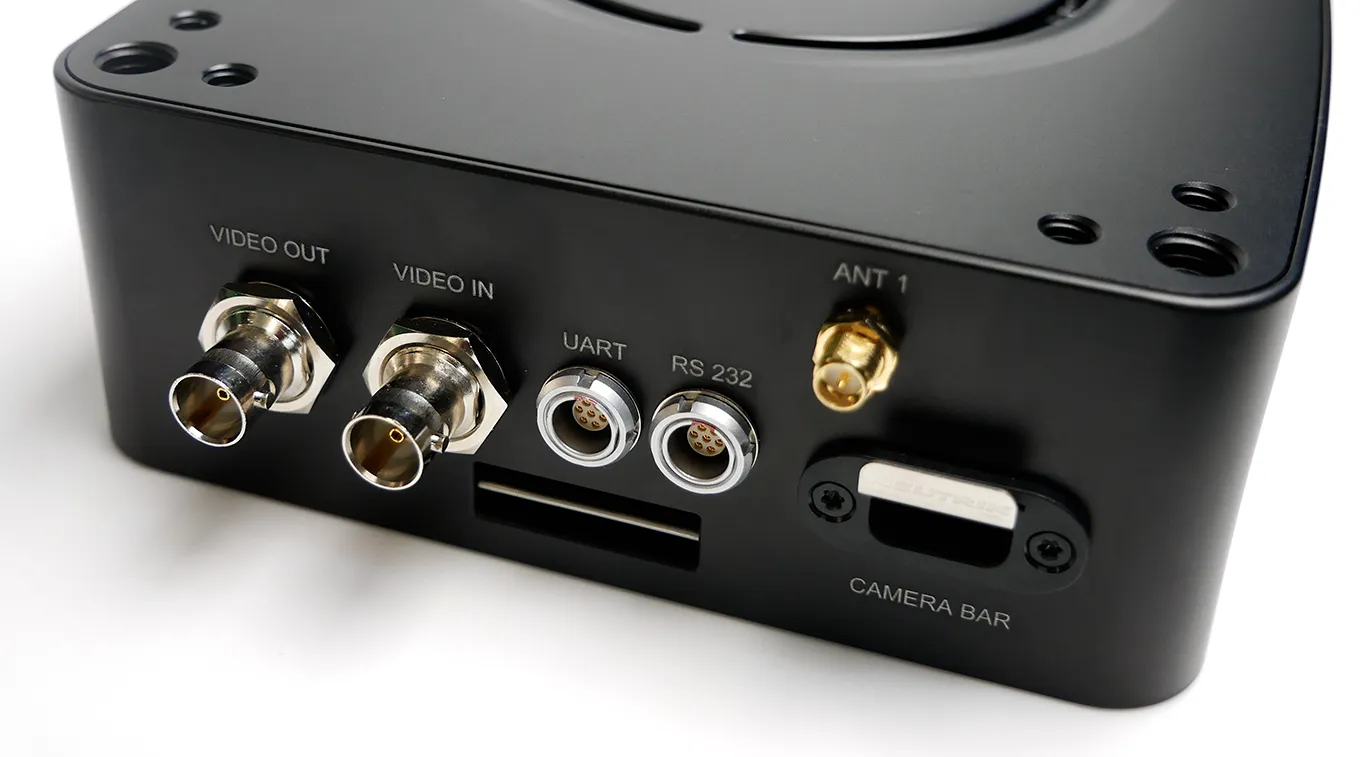

VIDEO IN - 3G SDI input for Mk2 server, required for system to work
VIDEO OUT - Optional SDI loop through, can be used to inject timecode if none present on input signal
UART - Connection for UART based encoders
RS 232 - Connection for RS 232 based encoders
CAMERA BAR - Lockable USB C connection for the camera bar
ANT 1 - Antenna connection for wireless
